Blueview Automotive Showroom Lighting Case

Blueview Automotive Showroom Lighting Case

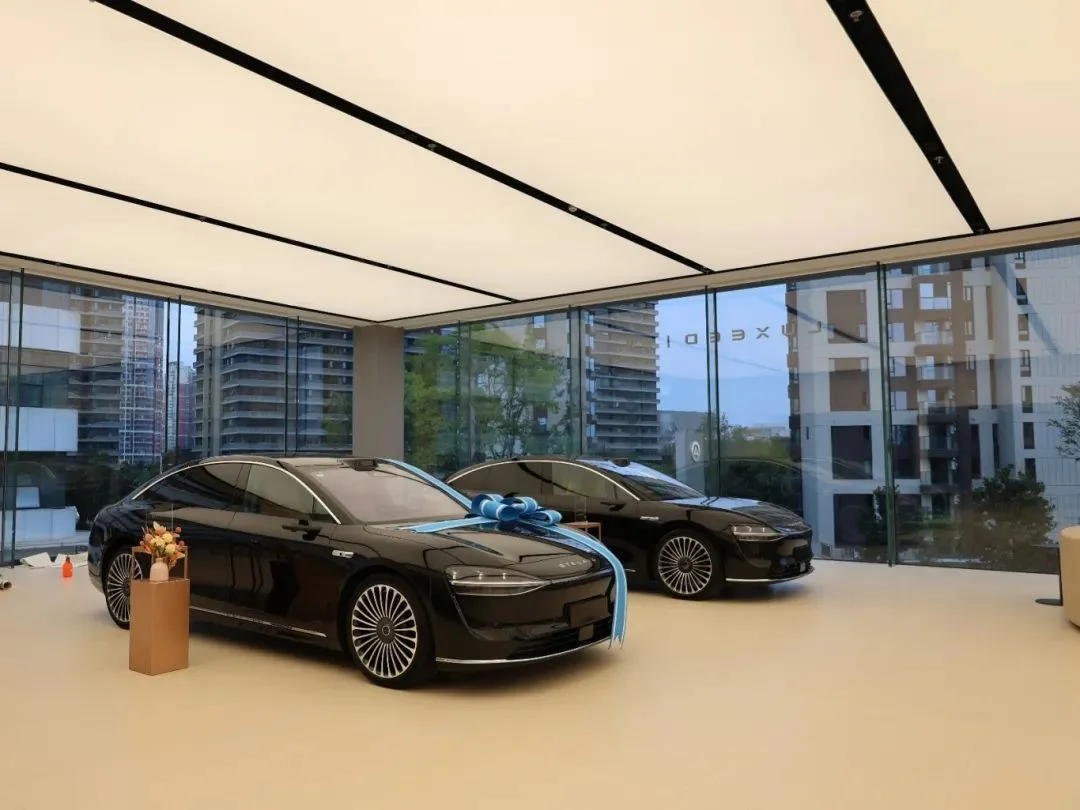

Traditional automotive showrooms often suffer from low overall brightness, inadequate lighting performance, and a lack of visual appeal. Lighting selection, layout, and tone are particularly important for creating a premium and luxurious test-driving atmosphere that enhances the overall customer experience.

1751684559 图片1

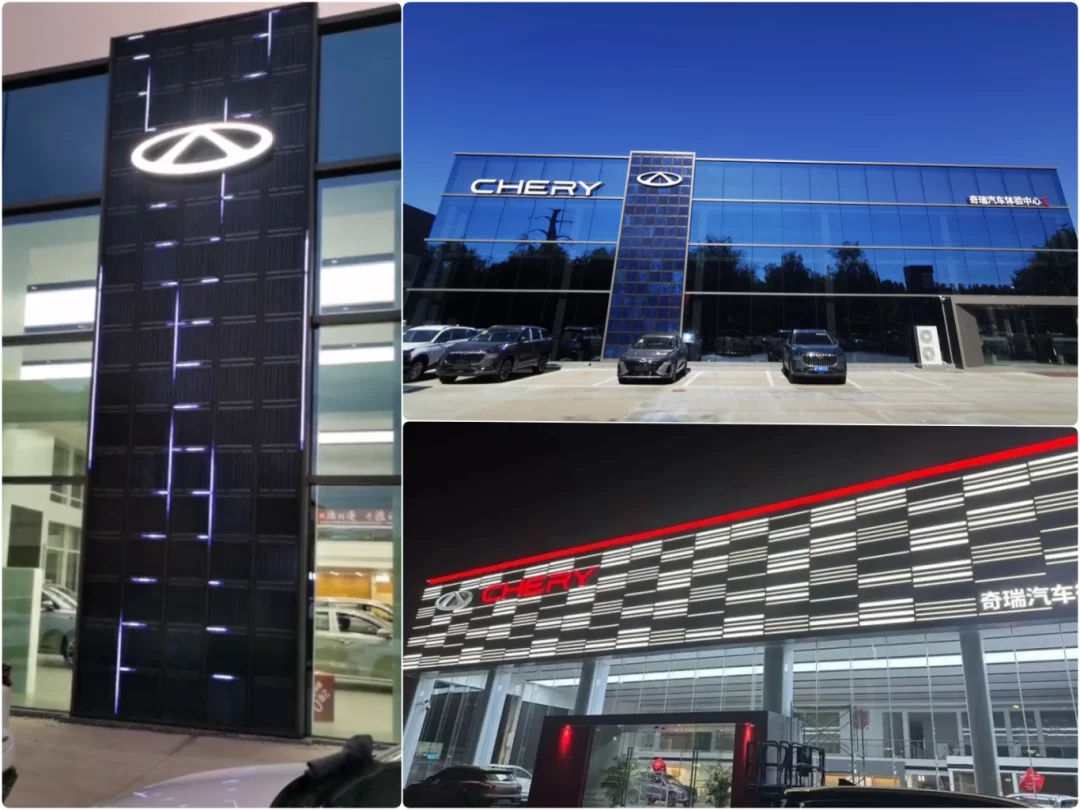

Unlike conventional signage, we custom-designed a large-scale, floor-standing facade for Chery’s showroom based on its architectural structure. The full-color LED module used is fully waterproof and tailored to the brand’s image.

1751684628 图片2

Modern high-end showrooms typically have ceiling heights ranging from 4–5 meters to even 7–8 meters. Aside from the ceiling, there is usually minimal decoration. Taking into account the display lighting and dimming requirements for vehicles, we referenced GB50034-2013 architectural lighting standards, recommending an illumination level of over 700 lux and a CRI (Color Rendering Index) of Ra ≥ 95.

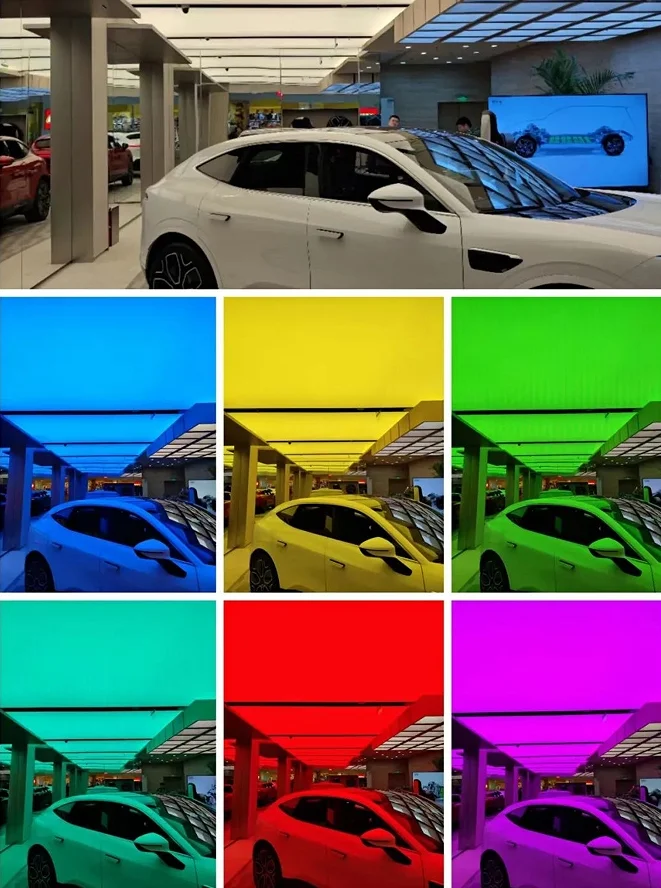

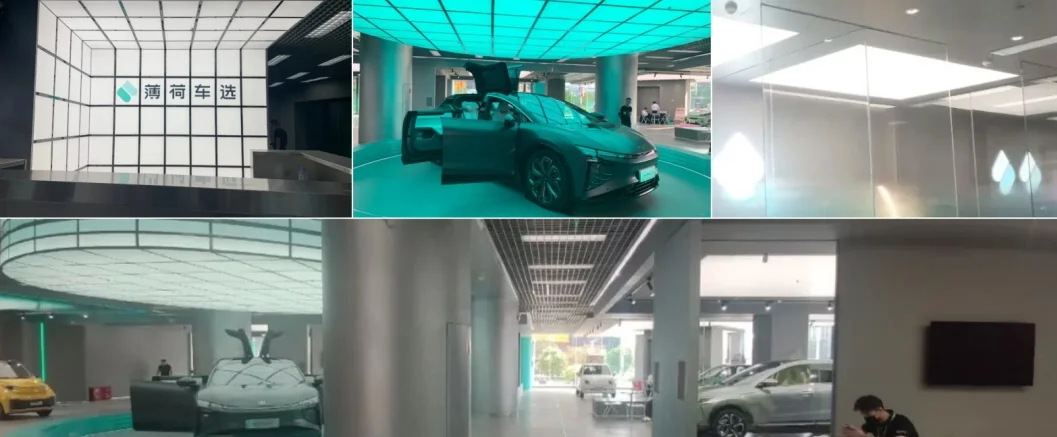

For the “Bohe Car Market” New Energy Vehicle Superstore (Guigang branch), we provided a complete space lighting design. The key display areas combine RGB stretch ceiling lighting with dual-color temperature track lights to achieve dynamic color changes. The overall store lighting adopts a main color temperature of 4000K–5000K, emphasizing high CRI, true color fidelity, and visual comfort using advanced LED sources.

1751684643 图片4

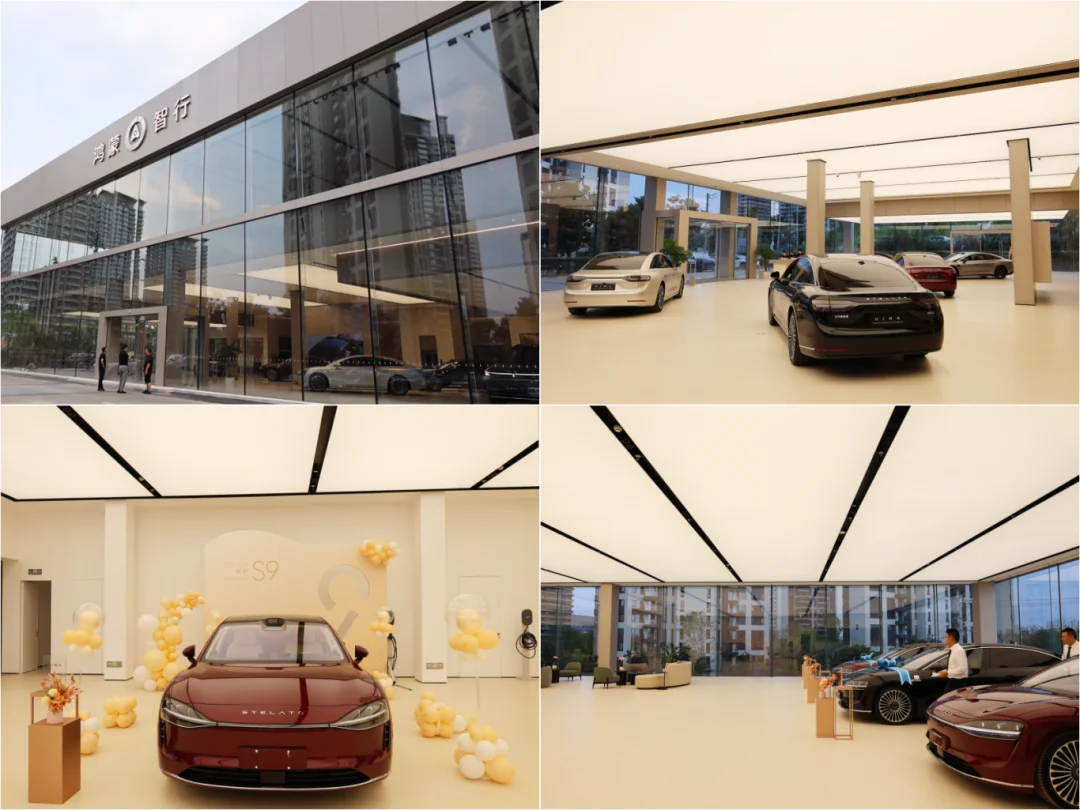

In the HarmonyOS Auto showroom, the ceiling is outfitted with large-area stretch ceiling integrated with high-quality LED light source. This design delivers diffused, gentle light. We tested and optimized lamp spacing and color temperature settings through multiple iterations for best performance.

1751684668 图片6

1751684830 图片11

Smart Lighting Integration for Dynamic Scenarios

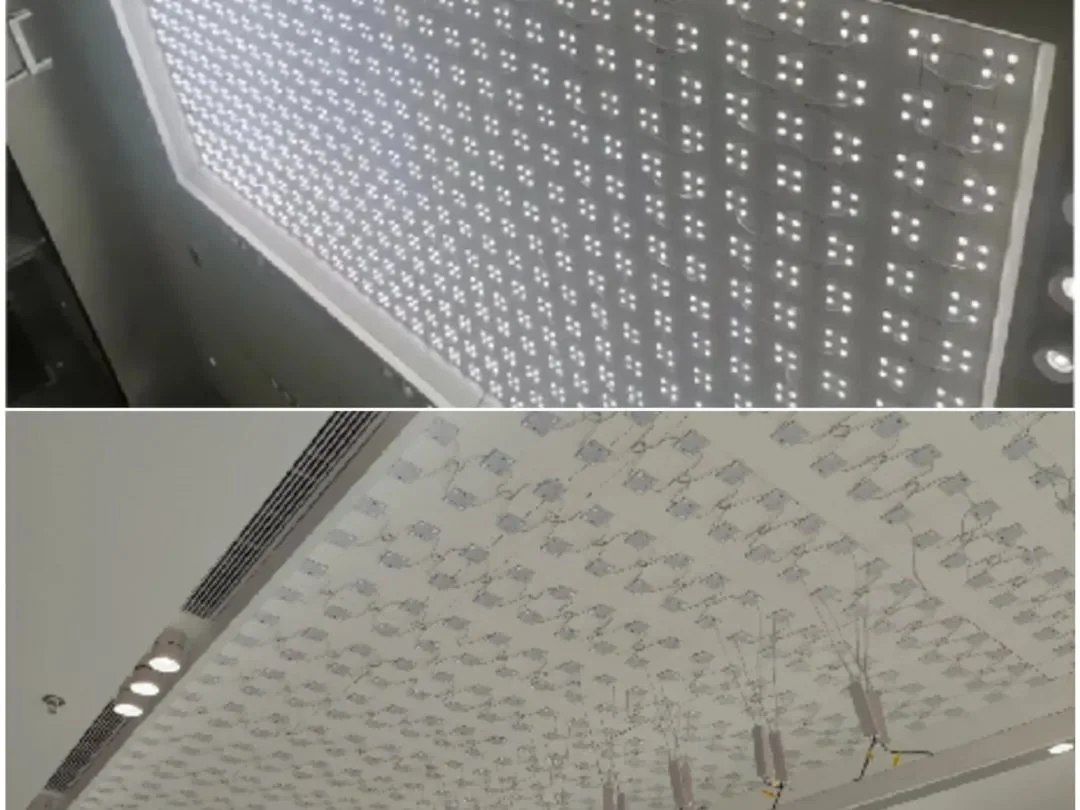

The smart lighting system supports long-distance mesh networking without manual configuration. It can connect to indoor lighting with simplified installation—no extra signal wiring is required. With integrated LED lamps and smart power supplies, plug-and-play intelligent control is achieved, reducing project timelines and wiring costs.

1751684841 图片12

Blueview’s smart control system consists of a C-series controller, C-series power supply, and touchscreen panel. It features self-networking, fault tolerance (single device failure won’t affect overall system), low power consumption, and low latency. It supports scalable deployment and can intelligently adjust temperature, humidity, brightness, and lighting effects based on foot traffic or weather conditions.

1751684872 13
