Shelf Lighting Design

Shelf Lighting Design

1665640310 图片1

01 Mounting above the display shelves.

Install the high-power wall washer directly above the display shelf, center it, and illuminate the ceiling vertically.

1665640325 图片2

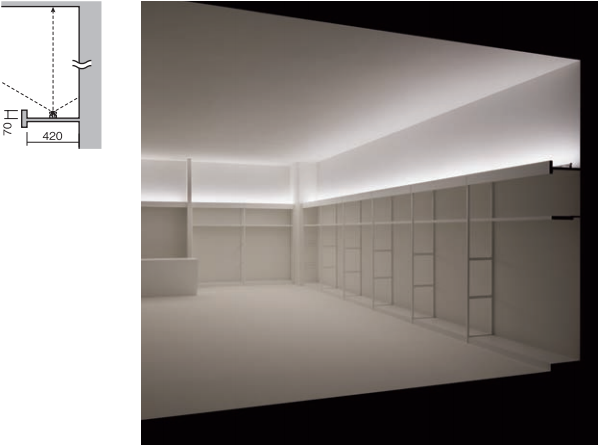

After trying to adjust the angle of the lamp outward, the illuminated range becomes significantly larger, and the entire space is brighter.

1665640338 图片3

02 Mounting behind a baffle

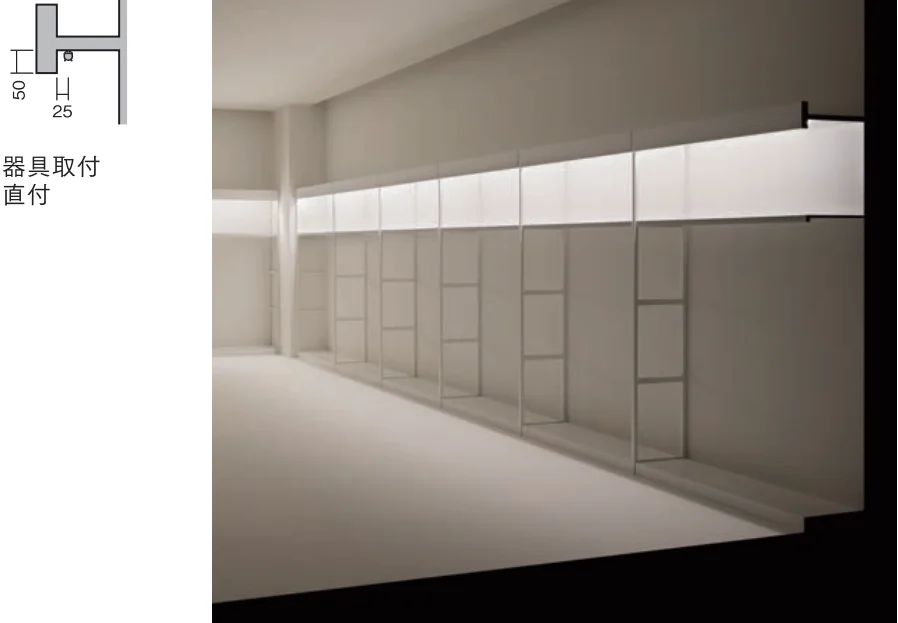

When lighting the display shelf, the lamps are usually installed as shown in the figure below. The baffle is very good to hide the LED lights, and the lighting effect is also good. Is there any possibility of improvement?

1665640415 图片4

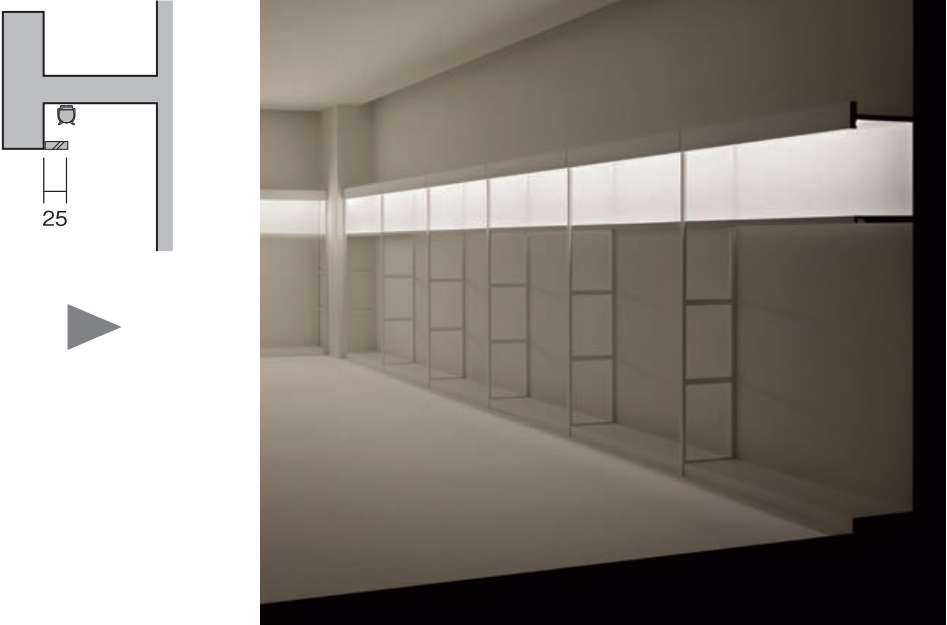

Add the cover plate as shown in the figure below, most of the light from the LED lights will be reflected by the cover plate into the display Shelf, so as to better highlight the product;

1665640430 图片5

03 Recessed Mounting – Down Side

The way of directly slotting the shelves and hiding the LED lights, as shown in the figure below, is also a method often used by many designers, but there will be some dark areas on the wall, which is not conducive to the display of products;

1665640457 图片6

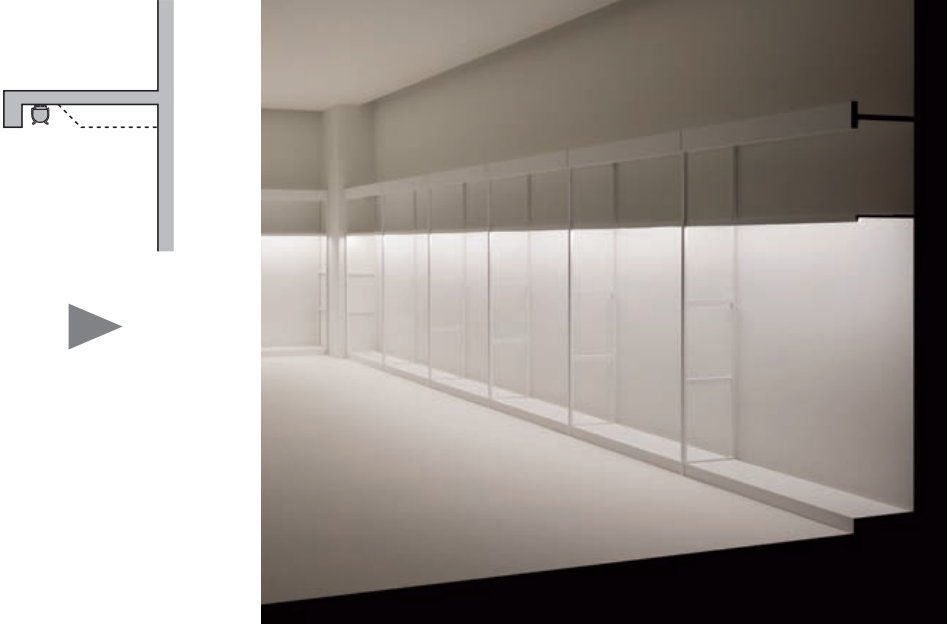

We can completely remove the rear part, as shown in the figure below, so that the light can be more uniform, and the product can be better illuminated;

1665640470 图片7

04 Recessed Mounting – Up Side

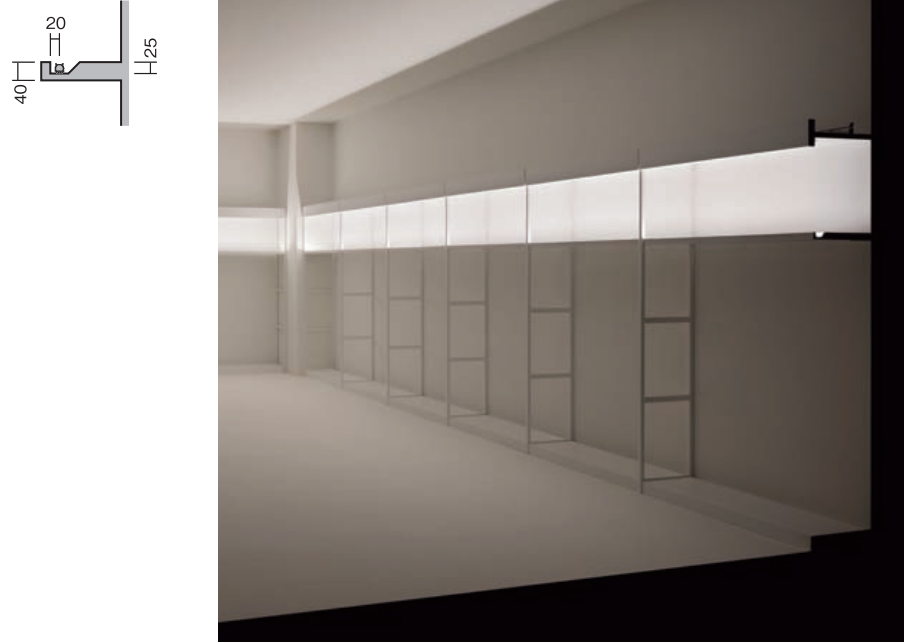

This method will illuminate the up side. Due to the influence of the upper layer, the light will be blocked. The design should be combined with the actual situation to avoid dark areas;

1665640490 图片10

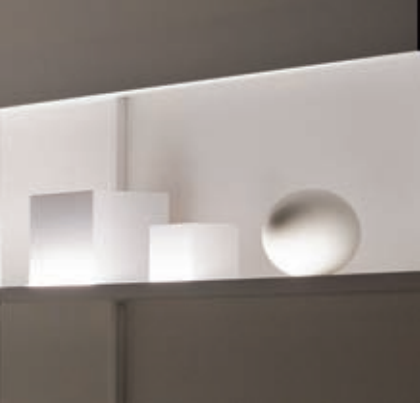

If the displayed product is opaque, it will mainly highlight the lower part of the product.

1665640500 图片11
