Description
| Part No. | Input Voltage | Power/m | LEDs/m | Lumen/m | CRI/Ra | Cuttable Length | Max Run |
|---|---|---|---|---|---|---|---|
| CC-G2835-78-36 | 36VDC | 12.88-40.13W | 78PCS | 1508-3626lm | 90+ | 25.4mm | 12m(current<0.39A/m) |
| CC-G2835-160-36 | 36VDC | 12.67-30.23W | 160PCS | 1930-4490lm | 80+ | 25mm | _ |

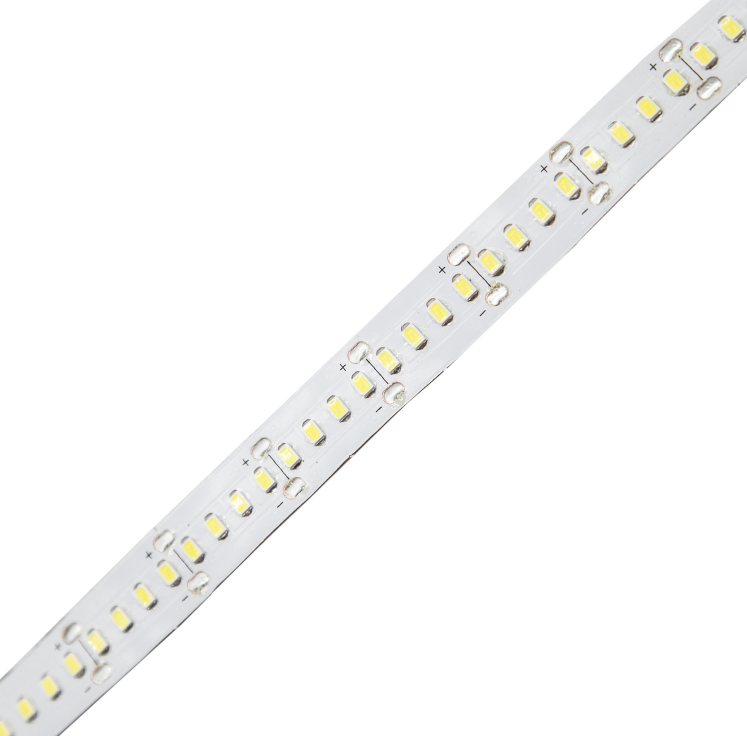

CC-G2835-XXX-36
2835ce120IP223year
- – Short LED pitch to 25mm[0.98in]
- – High efficacy up to 150 lm/w
- – Constant current drive for uniform brightness
- – Input voltage 30V-36V DC
- – Customized length and current based on brightness demand
- – Long lifespan with great lumen maintenance
- – Excellent UV resistance
