FWSL2216-XXX-XX-X

ce

  • – Adopt unique silica gel material and high quality 2216 LEDs.
  • – Great linear effect for uniform light,replace the traditional structure (light source +
    profile +PC cover) lighting products.
  • – Small size,easy installing.
  • – One bin only for one CCT
  • – Beam angle 120°,CRI 90+.
  • – Multiple color temperature optional.
Compare
SKU: 7e8176827e05 Categories: , Tag:

Description

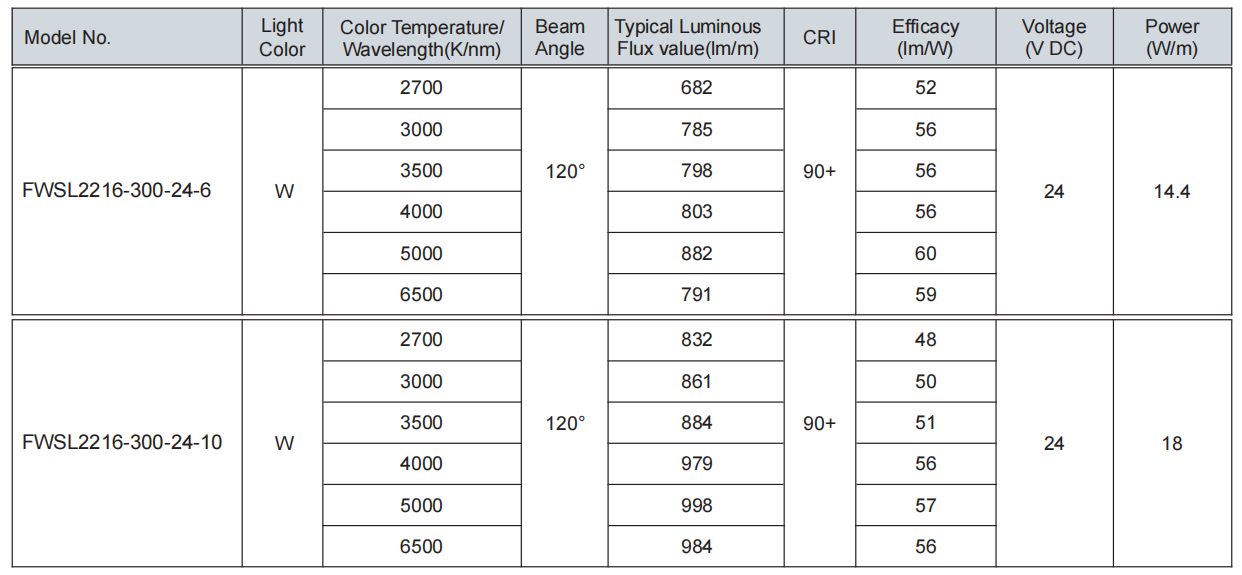

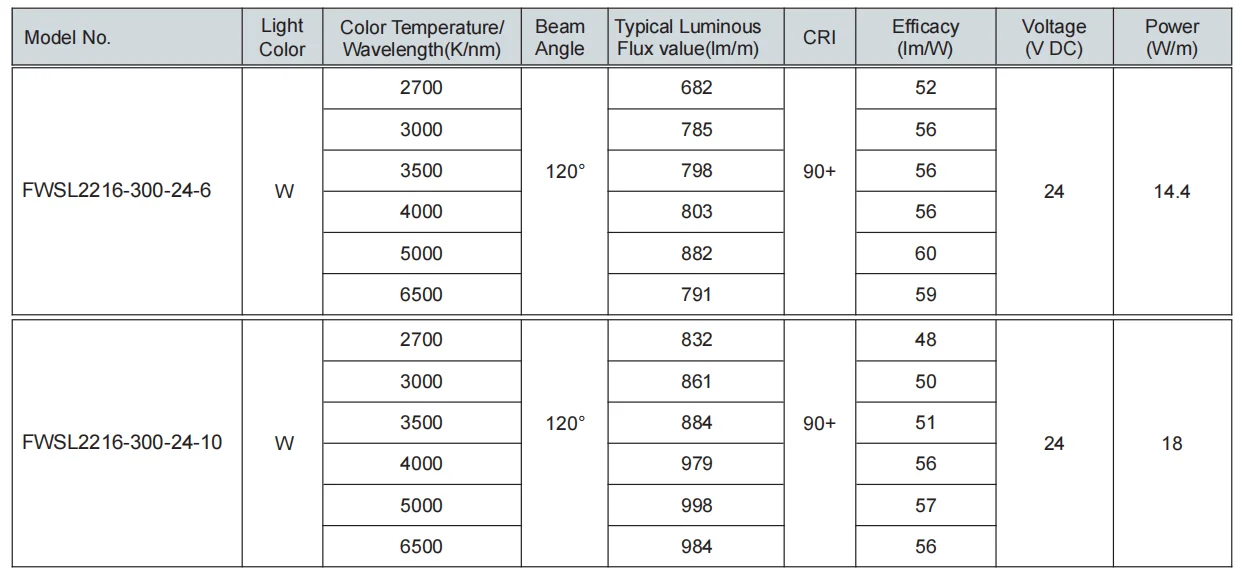

Part No. Color Temperature(K) PCB Width Input Voltage Power/m LEDs/m Lumen/m CRI/Ra Cuttable Length UL Max Run
FWSL2216-300-24-6 2700 6mm 24VDC 14.4W 300PCS 682lm 90+ 20mm 5.5m
FWSL2216-300-24-6 6500 6mm 24VDC 14.4W 300PCS 771lm 90+ 20mm 5.5m
FWSL2216-300-24-10 2700 10mm 24VDC 18W 300PCS 832lm 90+ 20mm 4.5m
FWSL2216-300-24-10 6500 10mm 24VDC 18W 300PCS 964lm 90+ 20mm 4.5m



ce

PRODUCT RESOURCES

imgSPECIFICATION SHEET DOWNLOAD
