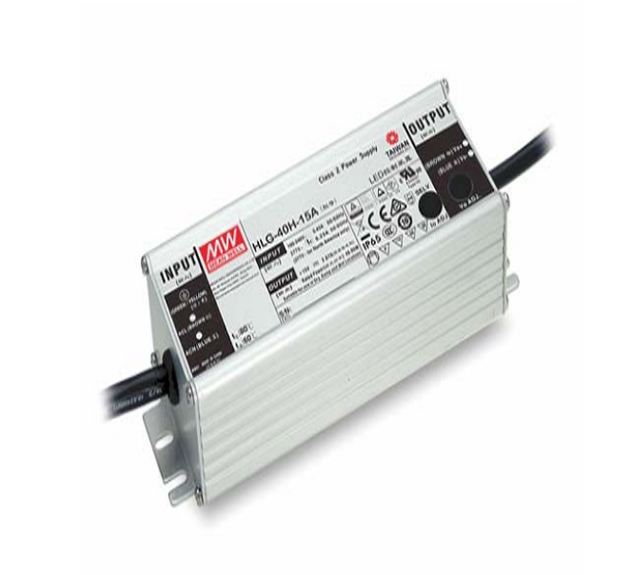

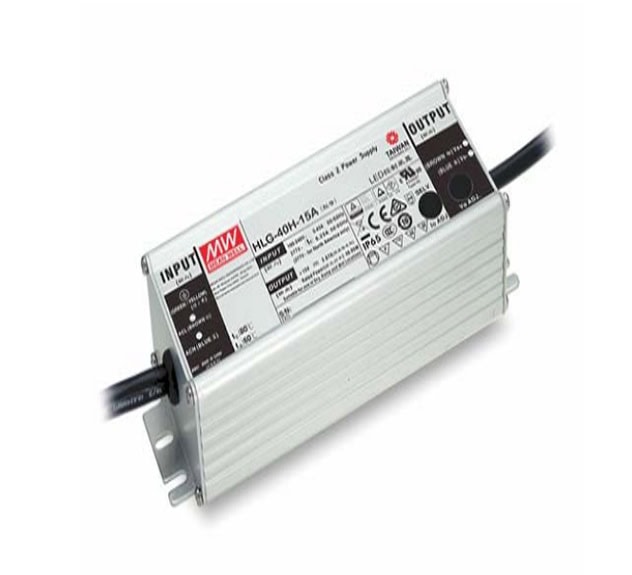

HLG-40H series WATERPROOF POWER SUPPLY

E318168CB3Cce

  • - constant voltage+constant current mode output
  • - metal housing with class I design
  • - bult-in active PFC function
  • - class 2 power unit
  • - IP67/IP65 rating for indoor or outdoor installations
  • - 7 years warranty
  • - function options:output adjustable via potentiometer;3 in 1 dimming;timer dimming
  • -typical lifetime>62000 hours
SKU： 18ff0c6d8d0d Categories: , 标签：

描述

Basic Specifications
Part No. Input Vol. Output Vol. Output Power Input Current Rated current Power Efficiency Product Size
HLG-40H-12 90-305VAC;127-431VDC 12VDC 39.96W 0.43A/115VAC;0.24A/230VAC;0.23A/277VAC 3.33A 86.5% 171*61.5*36.8mm
HLG-40H-15 90-305VAC;127-431VDC 15VDC 40.05W 0.43A/115VAC;0.24A/230VAC;0.23A/277VAC 2.67A 86.5% 171*61.5*36.8mm
HLG-40H-20 90-305VAC;127-431VDC 20VDC 40W 0.43A/115VAC;0.24A/230VAC;0.23A/277VAC 2A 88% 171*61.5*36.8mm
HLG-40H-24 90-305VAC;127-431VDC 24VDC 40.08W 0.43A/115VAC;0.24A/230VAC;0.23A/277VAC 1.67A 88% 171*61.5*36.8mm
HLG-40H-30 90-305VAC;127-431VDC 30VDC 40.2W 0.43A/115VAC;0.24A/230VAC;0.23A/277VAC 1.34A 88.5% 171*61.5*36.8mm
HLG-40H-36 90-305VAC;127-431VDC 36VDC 40.32W 0.43A/115VAC;0.24A/230VAC;O.23A/277VAC 1.12A 88.5% 171*61.5*36.8mm
HLG-40H-42 90-305VAC;127-431VDC 42VDC 40.32W 0.43A/115VAC;0.24A/230VAC;0.23A/277VAC 0.96A 88.5% 171*61.5*36.8mm
HLG-40H-48 90-305VAC;127-431VDC 48VDC 40.32W 0.43A/115VAC;0.24A/230VAC;0.23A/277VAC 0.84A 89.5% 171*61.5*36.8mm
HLG-40H-54 90-305VAC;127-431VDC 54VDC 40.5W 0.43A/115VAC;0.24A/230VAC;0.23A/277VAC 0.75A 89.5% 171*61.5*36.8mm
E318168CB3Cce

PRODUCT RESOURCES

imgSPECIFICATION SHEET DOWNLOAD
