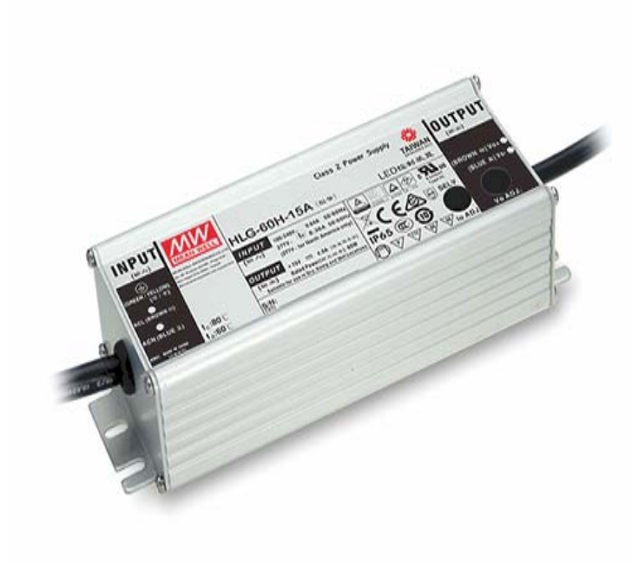

HLG-60H series WATERPROOF POWER SUPPLY

E318168CB3Cce

  • – constant voltage+constant current mode output
  • – metal housing with class I design
  • – bult-in active PFC function
  • – class 2 power unit
  • – IP67/IP65 rating for indoor or outdoor installations
  • – 7 years warranty
  • – function options:output adjustable via potentiometer;3 in 1 dimming;timer dimming
  • -typical lifetime>62000 hours
Compare
SKU: cd8cfed87152 Categories: , Tag:

Description

Part No. Input Vol. Output Vol. Output Power Input Current Rated current Power Efficiency Product Size
HLG-60H-15 90-305VAC;127-431VDC 15VDC 60W 0.64A/115VAC;0.32A/230VAC;0.3A/277VAC 4A 87.5% 171*61.5*36.8mm
HLG-60H-20 90-305VAC;127-431VDC 20VDC 60W 0.64A/115VAC;0.32A/230VAC;0.3A/277VAC 3A 89% 171*61.5*36.8mm
HLG-60H-24 90-305VAC;127-431VDC 24VDC 60W 0.64A/115VAC;0.32A/230VAC;0.3A/277VAC 2.5A 89.5% 171*61.5*36.8mm
HLG-60H-30 90-305VAC;127-431VDC 30VDC 60W 0.64A/115VAC;0.32A/230VAC;0.3A/277VAC 2A 90% 171*61.5*36.8mm
HLG-60H-36 90-305VAC;127-431VDC 36VDC 61.2W 0.64A/115VAC;0.32A/230VAC;O.3A/277VAC 1.7A 90% 171*61.5*36.8mm
HLG-60H-42 90-305VAC;127-431VDC 42VDC 60.9W 0.64A/115VAC;0.32A/230VAC;0.3A/277VAC 1.45A 90% 171*61.5*36.8mm
HLG-60H-48 90-305VAC;127-431VDC 48VDC 62.4W 0.64A/115VAC;0.32A/230VAC;0.3A/277VAC 1.3A 90.5% 171*61.5*36.8mm
HLG-60H-54 90-305VAC;127-431VDC 54VDC 62.1W 0.64A/115VAC;0.32A/230VAC;0.3A/277VAC 1.15A 90.5% 171*61.5*36.8mm
E318168CB3Cce

PRODUCT RESOURCES

imgSPECIFICATION SHEET DOWNLOAD
