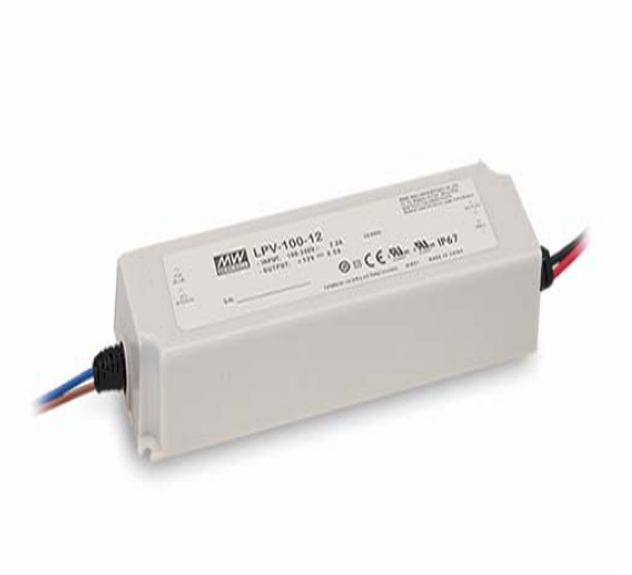

LPV-100 series WATERPROOF POWER SUPPLY
E318168ce
- – Constant voltage design
- – universal AC input/full range
- – withstand 300VAC surge input for 5 seconds
- – protection:short circuit/overload/over voltage
- – cooling by free air convection
- – fully encapsulated with IP67 level (note.8)
- – fully isolated plastic case
- – 100% full load burn-in test
- – low cost,high reliability
- – 2 years warranty
- – suitable for led related fixture or appliance(such as led decoration or advertisement devices)(note.7)
Compare
Description
| Part No. |
Input Vol. |
Output Vol. |
Output Power |
Input Current |
Rated current |
Power Efficiency |
Product Size |
| LPV-100-5 |
90-264VAC;127-370VDC |
5VDC |
60W |
2.2A/115VAC;1.2A/230VAC |
12A |
80% |
190*52*37mm |
| LPV-100-12 |
90-264VAC;127-370VDC |
12VDC |
102W |
2.2A/115VAC;1.2A/230VAC |
8.5A |
85% |
190*52*37mm |
| LPV-100-15 |
90-264VAC;127-370VDC |
15VDC |
100.5W |
2.2A/115VAC;1.2A/230VAC |
6.7A |
87% |
190*52*37mm |
| LPV-100-24 |
90-264VAC;127-370VDC |
24VDC |
100.8W |
2.2A/115VAC;1.2A/230VAC |
4.2A |
88% |
190*52*37mm |
| LPV-100-36 |
90-264VAC;127-370VDC |
36VDC |
100.8W |
2.2A/115VAC;1.2A/230VAC |
2.8A |
88% |
190*52*37mm |
| LPV-100-48 |
90-264VAC;127-370VDC |
48VDC |
100.8W |
2.2A/115VAC;1.2A/230VAC |
2.1A |
89% |
190*52*37mm |
