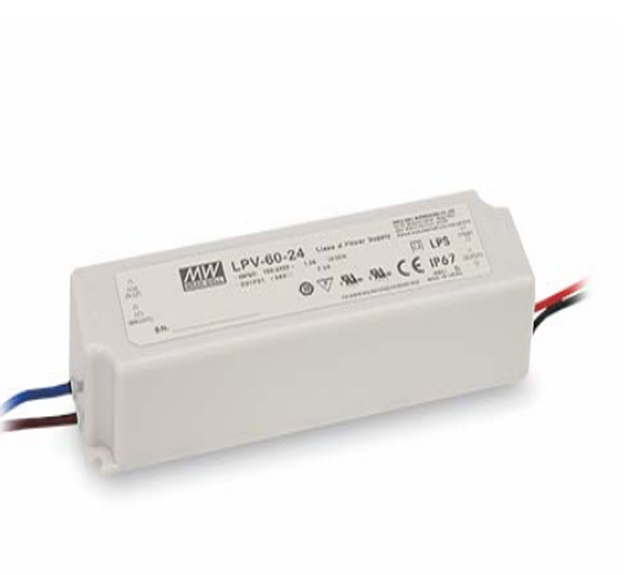

LPV-60 series WATERPROOF POWER SUPPLY
E318168CBce
- – Constant voltage design
- – universal AC input/full range
- – withstand 300VAC surge input for 5 seconds
- – protection:short circuit/overload/over voltage
- – cooling by free air convection
- – fully encapsulated with IP67 level (note.9)
- – fully isolated plastic case
- – class Ⅱ power unit,no FG
- – class 2 power unit
- – pass LPS
- – 100% full load burn-in test
- – low cost,high reliability
- – 2 years warranty
- – suitable for led related fixture or appliance(such as led decoration or advertisement devices)
Description
| Part No. | Input Vol. | Output Vol. | Output Power | Input Current | Rated current | Power Efficiency | Product Size |
|---|
| LPV-60-5 | 90-264VAC;127-370VDC | 5VDC | 40W | 1.2A/115VAC;1A/230VAC | 8A | 76% | 162.5*42.5*32mm |
| LPV-60-12 | 90-264VAC;127-370VDC | 12VDC | 60W | 1.2/115VAC;1A/230VAC | 5A | 83% | 162.5*42.5*32mm |
| LPV-60-15 | 90-264VAC;127-370VDC | 15VDC | 60W | 1.2A/115VAC;1A/230VAC | 4A | 83% | 162.5*42.5*32mm |
| LPV-60-24 | 90-264VAC;127-370VDC | 24VDC | 60W | 1.2A/115VAC;1A/230VAC | 2.5A | 86% | 162.5*42.5*32mm |
| LPV-60-36 | 90-264VAC;127-370VDC | 36VDC | 60W | 1.2A/115VAC;1A/230VAC | 1.67A | 86% | 162.5*42.5*32mm |
| LPV-60-48 | 90-264VAC;127-370VDC | 48VDC | 60W | 1.2A/115VAC;1A/230VAC | 1.25A | 86% | 162.5*42.5*32mm |
